Screen Shots of Tracking

Press the picture to get a larger view of the screen.

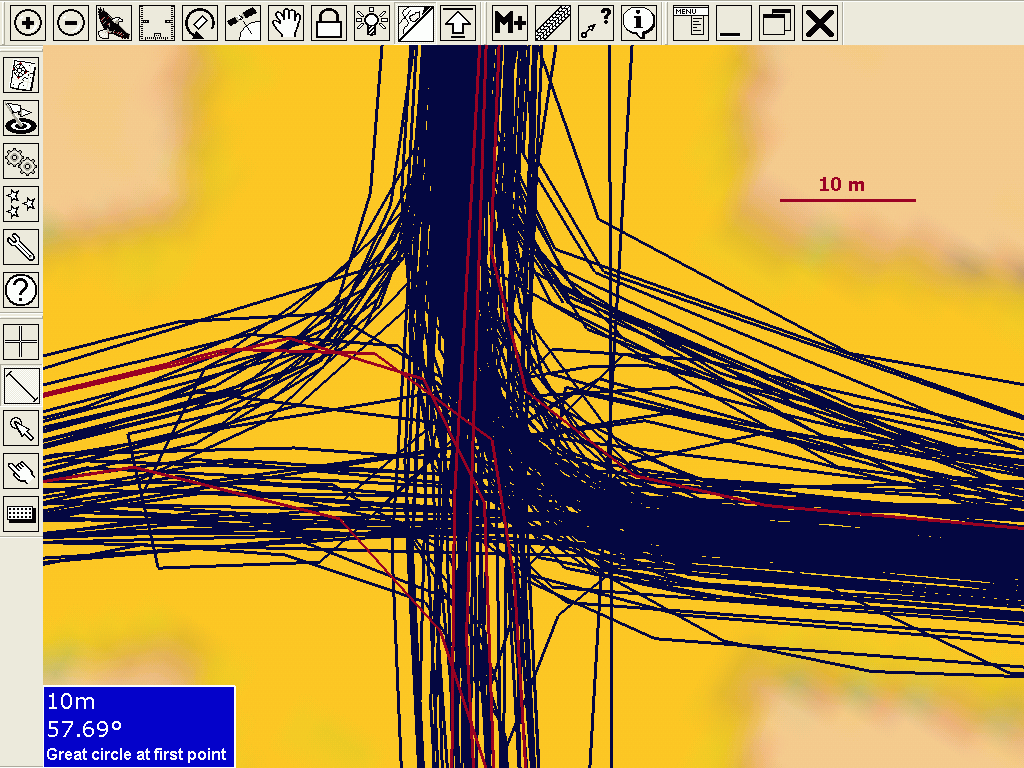

Road crossing on a map (yellow) and
about half a year of tracks on it (black).
Notice the reference measure of 10 meters.
It can be seen that the accuracy of a
WAAS/EGNOS enabled GPS is about +/-3 meters
since lanes are about six meters wide.

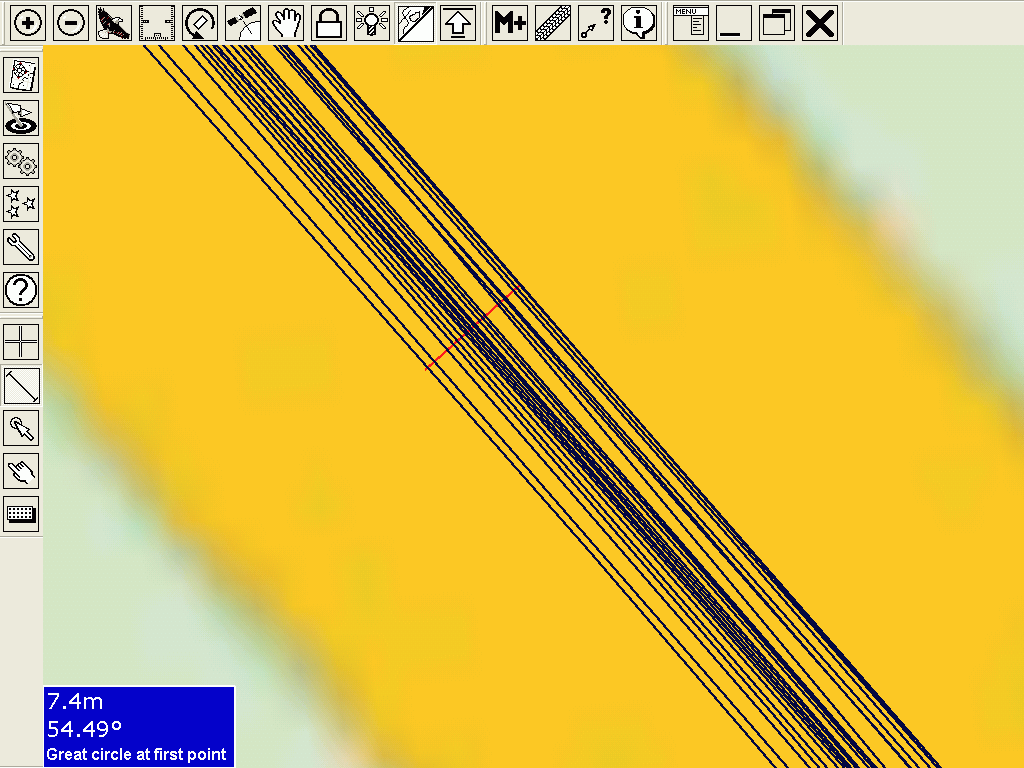

Tracks on a straight road showing maximum
separation of about 7.4 meters yielding
+/-3.7 m for two lanes.

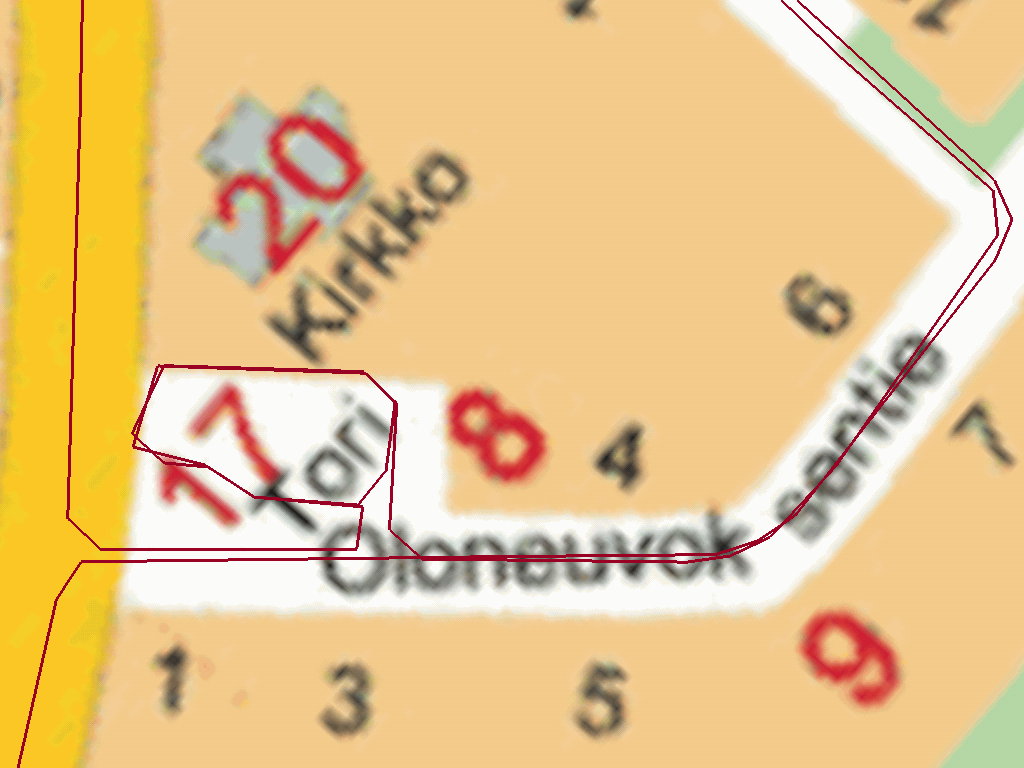

The square near a church has been measured by driving a car
around it. Its size is about 30 x 60 meters.
