GPS antenna/receiver placement
recommendations

Antenna can be placed under thin plastics or
glass but not under metals. The best place is where
the antenna can see the whole sky at the same time.
Two receivers should not be placed too close to each
other, for example 1 meter after another.

GPS antenna GPS antenna

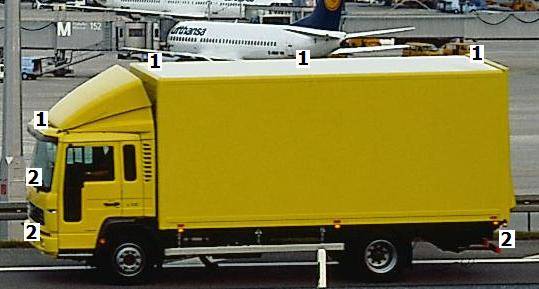

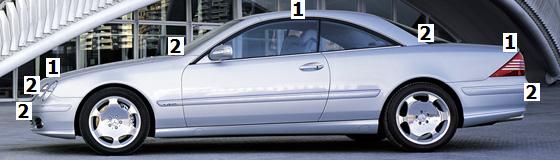

1. Highly recommended antenna locations.
Signal reception and accuracy will be superior.

2. Signal reception in these locations will
not be as strong as number 1.
